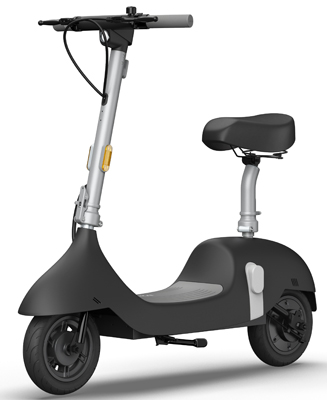

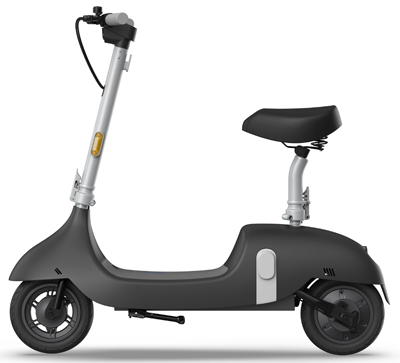

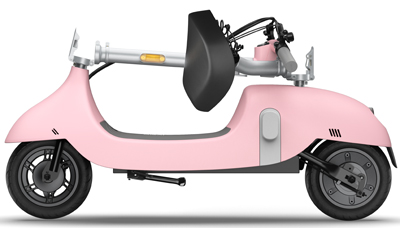

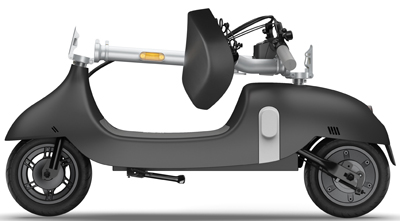

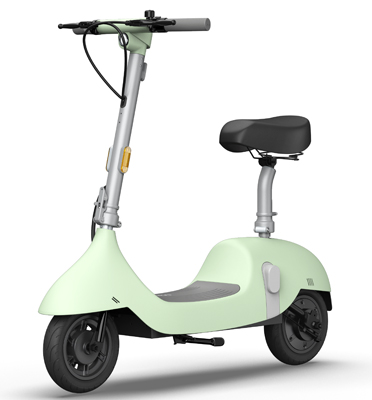

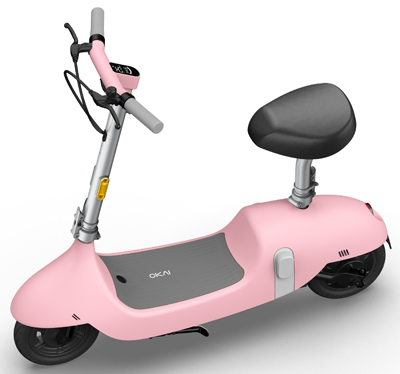

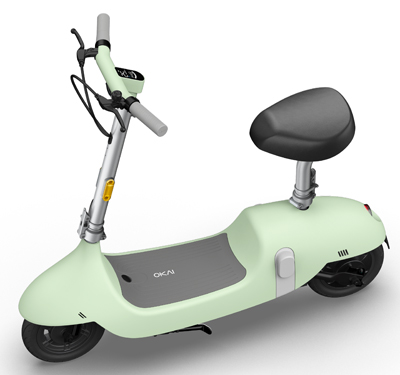

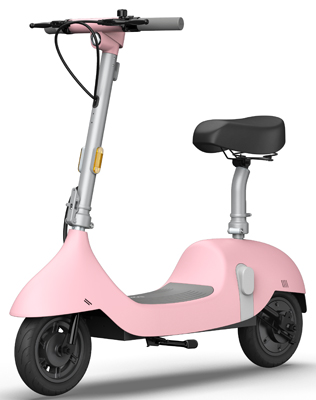

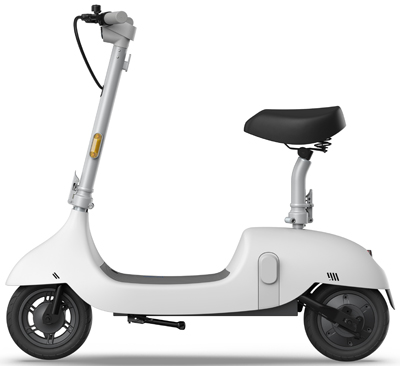

Disclaimer: Every effort has been made to ensure the accuracy of the information provided. However, product specifications, configurations, and systems/components are subject to change with equal performance substitutes with out notice. Information will be updated when available. Model OKAI Beetle Pro (EA10C) Number ITEM 1 Vehicle parameters Expansion: LxWxH 1145*533*1045mm?45.08*20.98*41.14inch? 2 Folding: LxWxH 1145*554 *614mm?45.08*21.81*24.17inch? 3 N.W. 29kg?63.93lbs? 4 Max Speed 25km/h?15.5mph? 5 Range ≤55km?34.18miles? 6 Max gradient 20% 7 Adapted terrain Pavement 8 Operating temperature 0?40? 9 Waterproof grade IPX5 10 Charging time 2A?6H?3A?4H 11 Battery Parameter Rated Voltage 48V 12 Rated Capacity 10.4Ah 13 Battery (cell) Qty 52Pcs 14 Motor Parameter Motor size 10 inch 15 Max torque 28N.m 16 Rated Voltage 48V 17 Rated power 350W 18 Max power 900W 19 Motor control mode Brushless gearless motor 20 Brake Brake stopping distance ?4.5m (14.76ft) 21 Brake mode Front: mechanical drum brake Rear: mechanical drum brake + electronic brake 22 Tires Tire Size Front : 10 inch Rear: 10 inch 23 Tire materials Vacuum tires 24 Charger Input voltage 100-240V 25 Output voltage 54.6V 26 Output current 2A 27 Rider Max Load 100kg?220.46lbs? 28 Recommended age >14 years old 29 Required height 120-200cm?3.94-6.56ft? 30 Features Brake light Light off/low light flashing alternately 31 Ride Mode Zero start (Rear drive) 32 Suspension Type Rear Suspension 33 Certification UL 2272?2019, FCC SDOC, Prop 65 Test Report 34 Packing Manner of packing 1pc/ctn 35 G.W. 33.5kg?73.85lbs? 36 LxWxH 1165*330*550mm?45.87*12.99*21.65inch? 37 UPC Code OKAI EA10C White US (48V)-UL 608938952011 38 OKAI EA10C Black US (48V)-UL 608938952028 39 EA-EA10C-US-PNK-48V-UL 608938952035 40 EA- EA10C Green US (48V)-UL 810100340018 41 Description OKAI Beetle Pro is designed with a new concept, just to bring you a perfect and comfortable riding experience like never before. The stylish exterior design and ergonomically designed high stretch compression seat will become a unique scenery on the road, and with the upgraded Beetle Pro goes farther and faster. 35 miles of range and 900W peak power will make your journey long again! 42 Key Selling Points  1. Stylish one-of-a kind design 2. Customers can paint and add decals to make a custom statement - D.I.Y. friendly! 3. The upgraded Beetle Pro goes further and faster:35-mile range 900w peak power 43 Warranty  Main engine:Frame assembly, wheel hub motor assembly, controller assembly, handle, instrument assembly,front straight rod and charging port;——One year warranty Parts:Battery assembly, charger, brake handle and fifinger-operating throttle;——Six months warranty Vulnerable parts of appearance?Handle covers, front fenders, rear fenders, plastic pedals, reflflective stickers, parking bracket assembly and rubber plug?——Three months warranty  44 Setup Guide Video https://www.youtube.com/watch?v=xhyxef_1bgk&t=136s

Explosive View[1] Explosive View[2]
