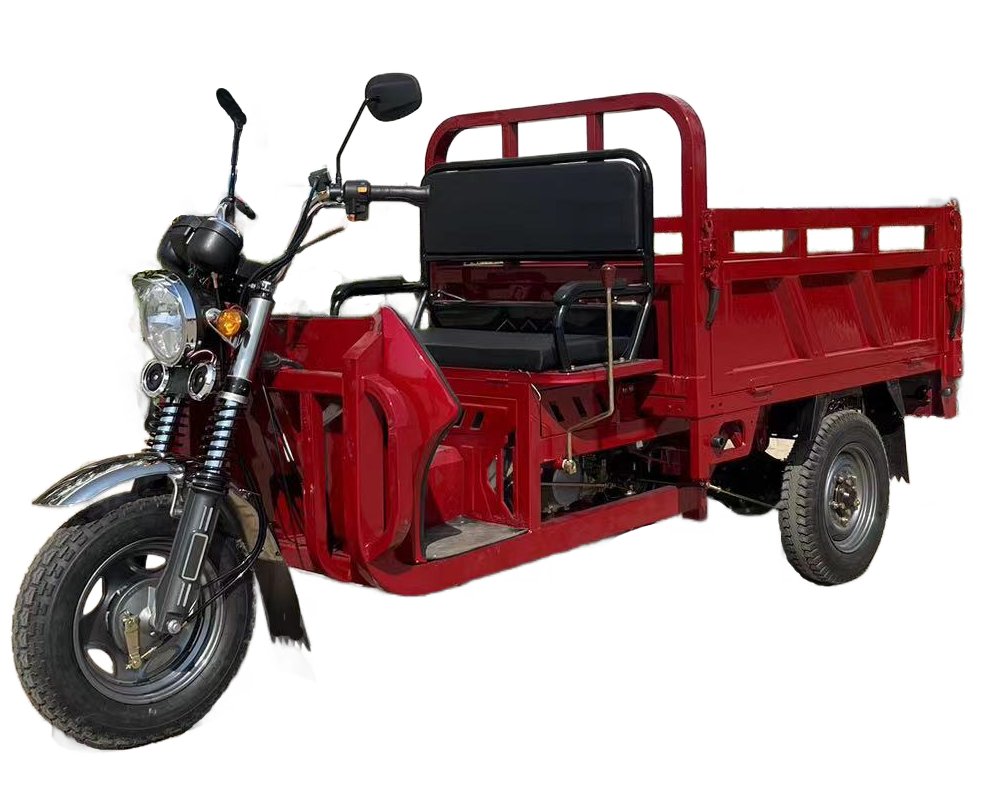

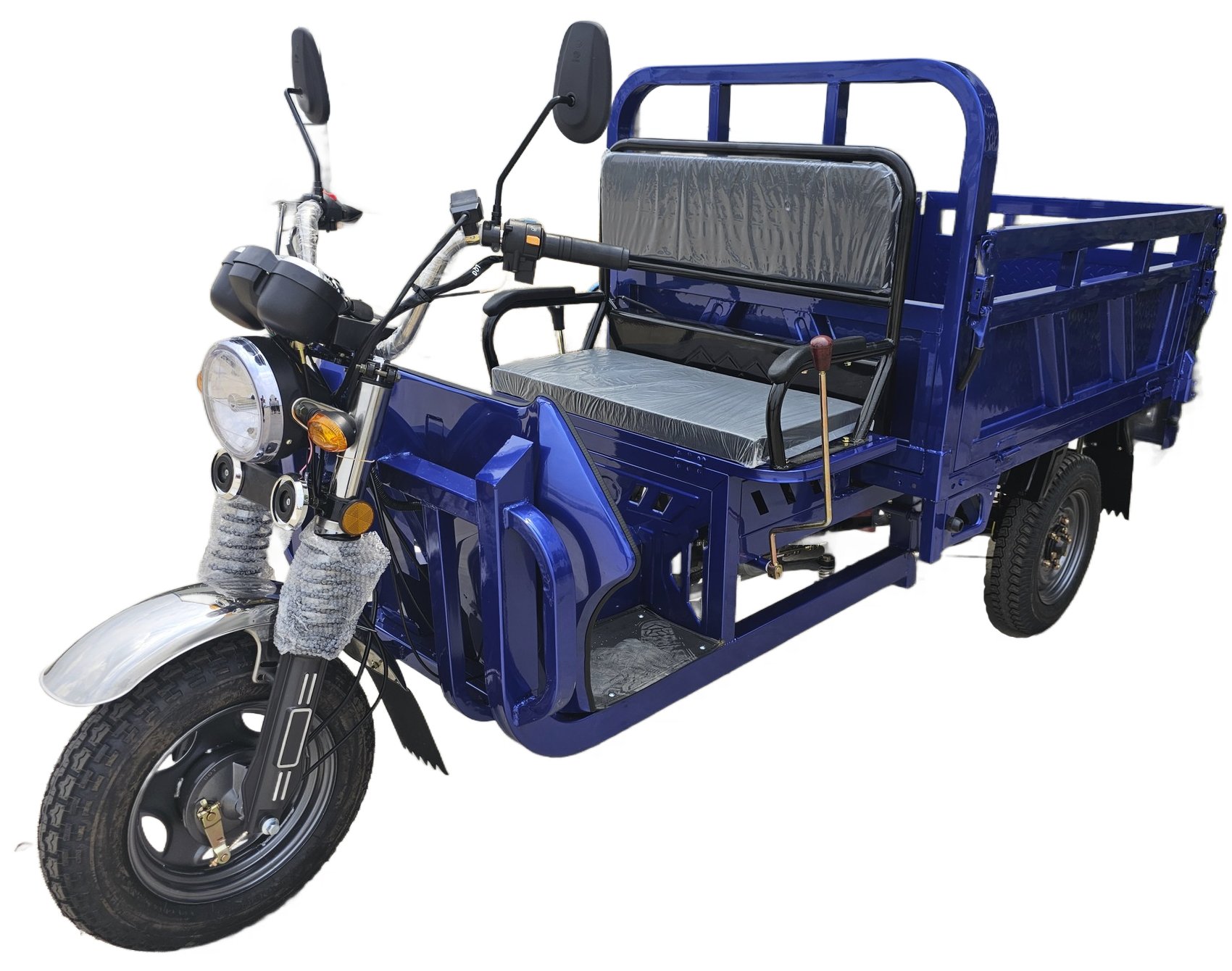

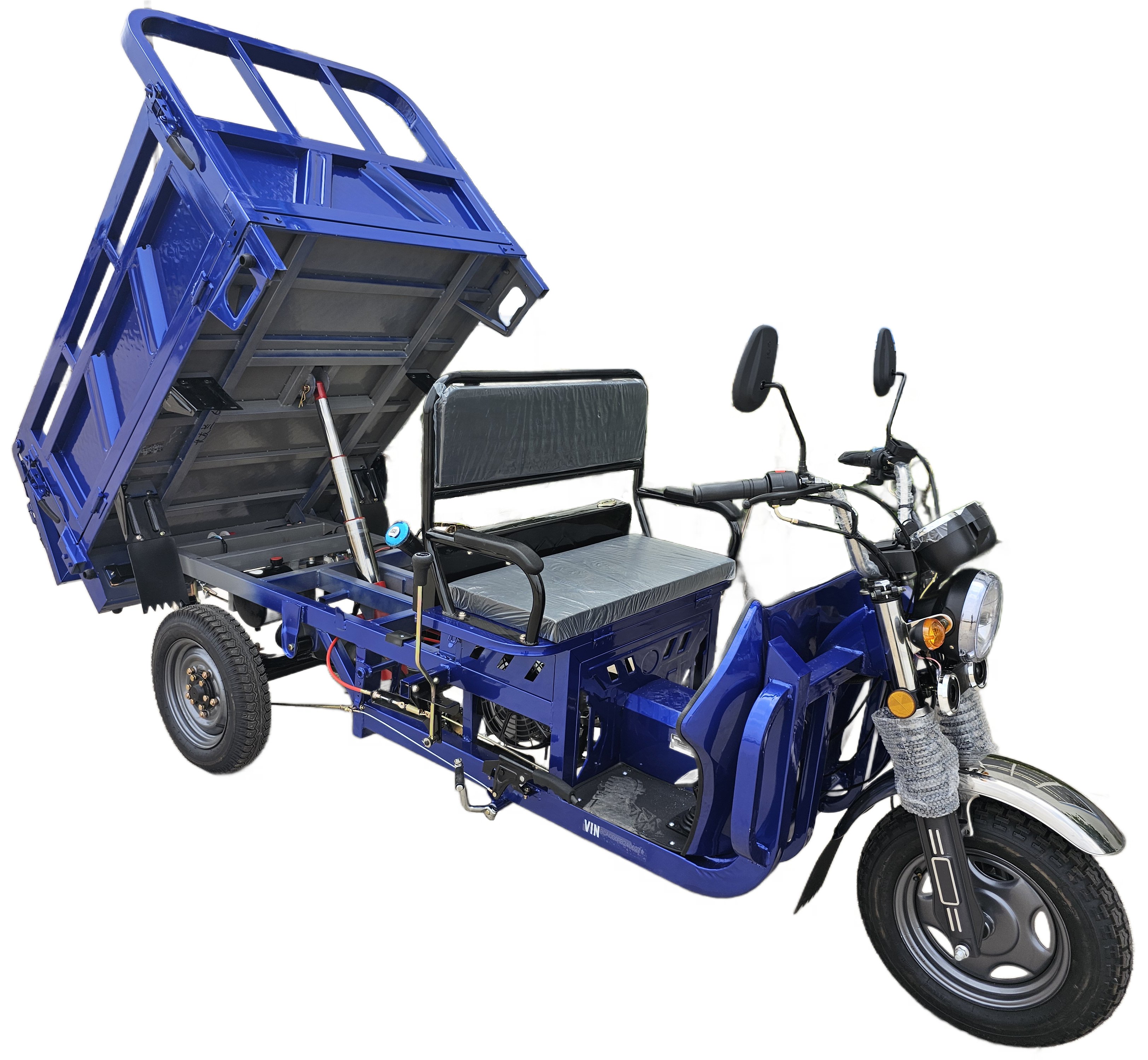

BD 125-12-Tricycle
(Street Legal, Hydraulic Dump Bed)
Engine: 124cc, 4 Stroke, Single Cylinder

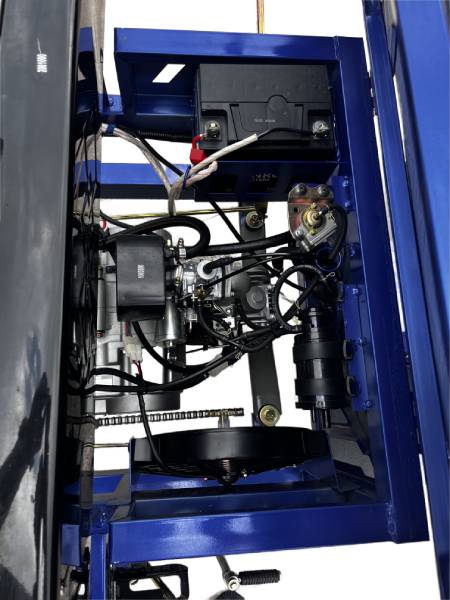

Cooling: Air Cooled With Auxiliary Fan
Starter System: Electric & Kick Start
Final Drive : Shaft Drive
Ignition system: CDI
Transmission: Shaft, Automatic L-H-N-R

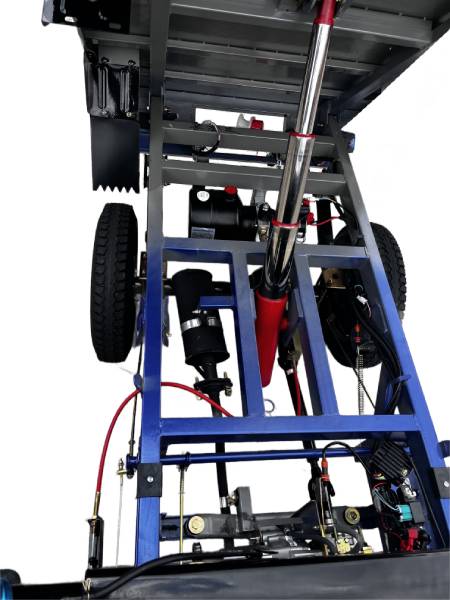

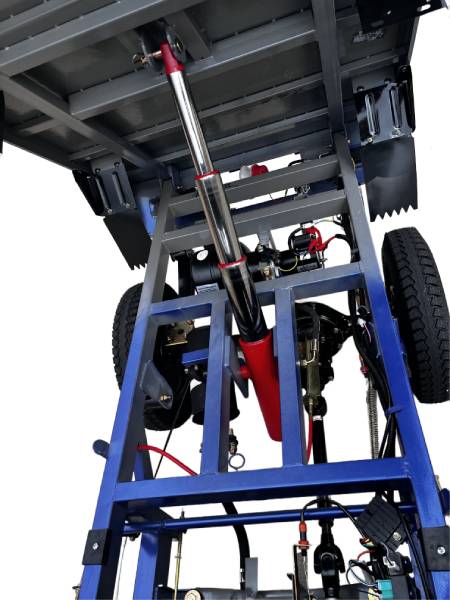

Discharge: Auto Hydraulic
Battery: 12V & 32AH （7“ x 5” x 6.5”）

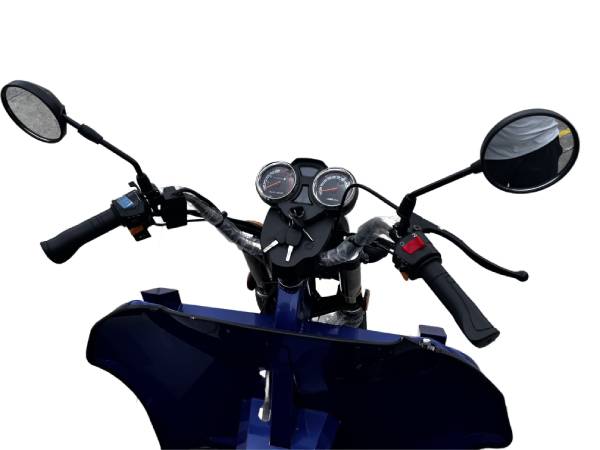

Brake Type: Drum, Front (Hand),Rear(Foot),With Hand Parking Brake
Max Speed : 30-40 MPH
Dump Bed Capacity (LBS): 600 -800

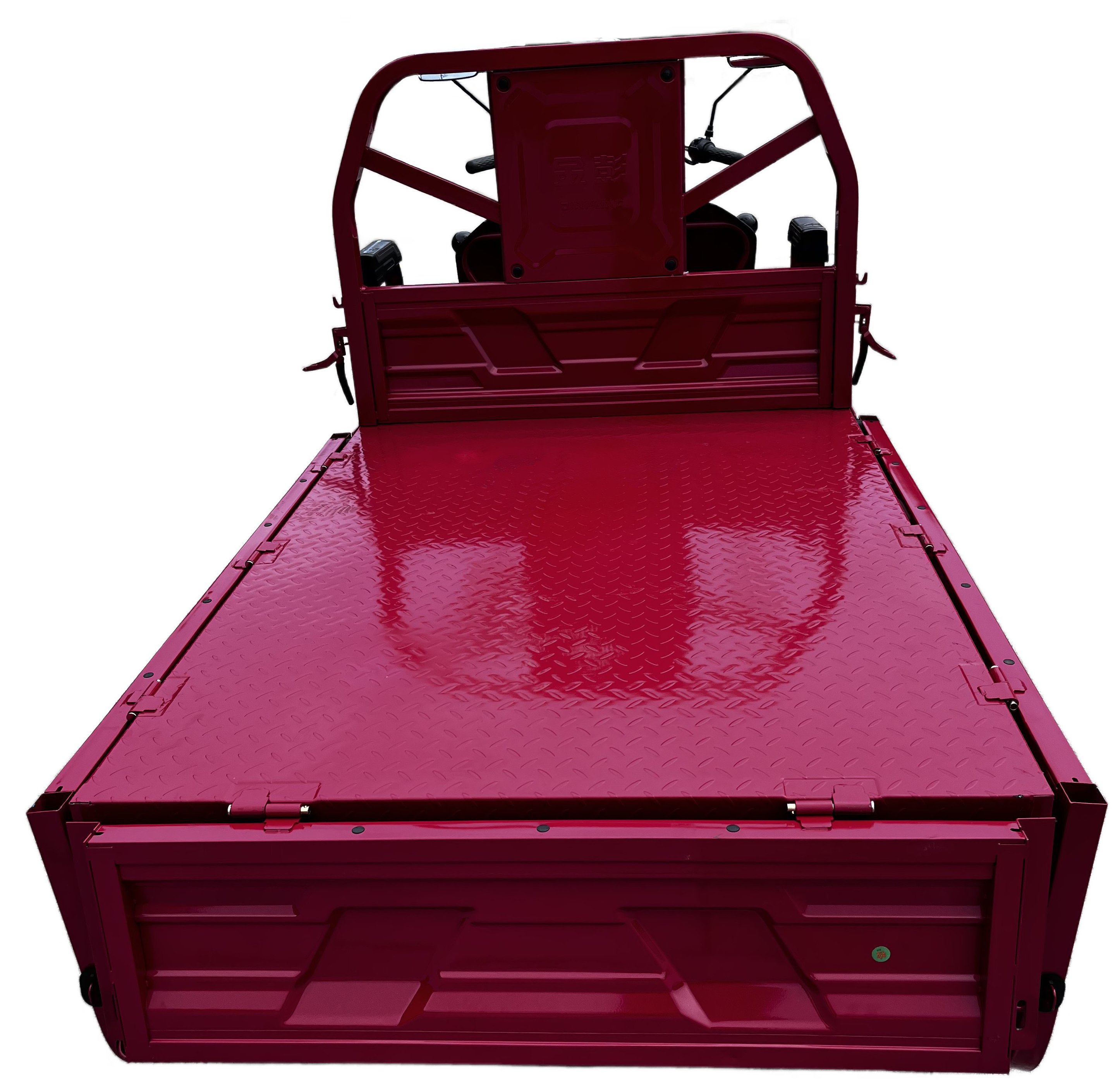

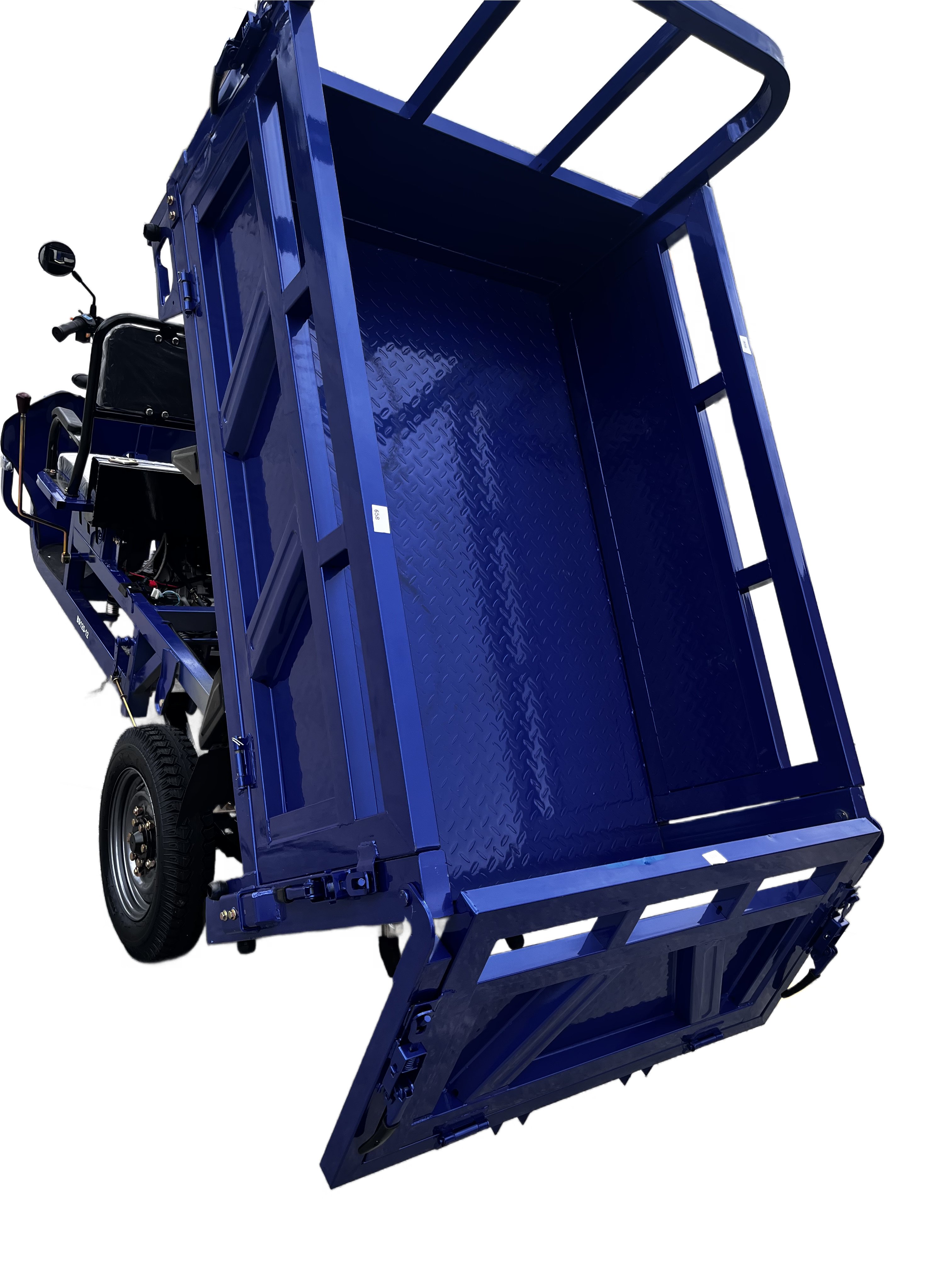

Dump Bed Size (Inch): L56” W36” H19”

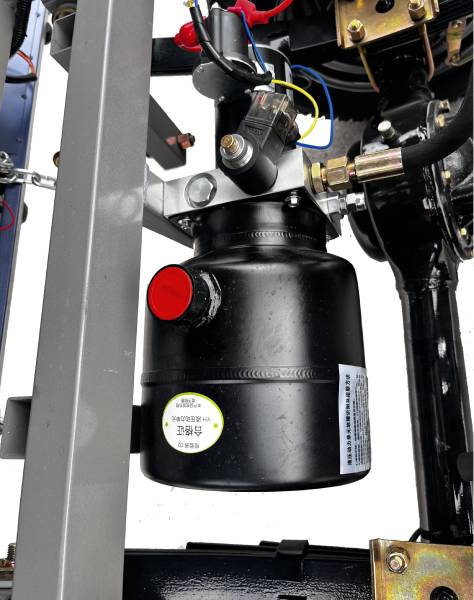

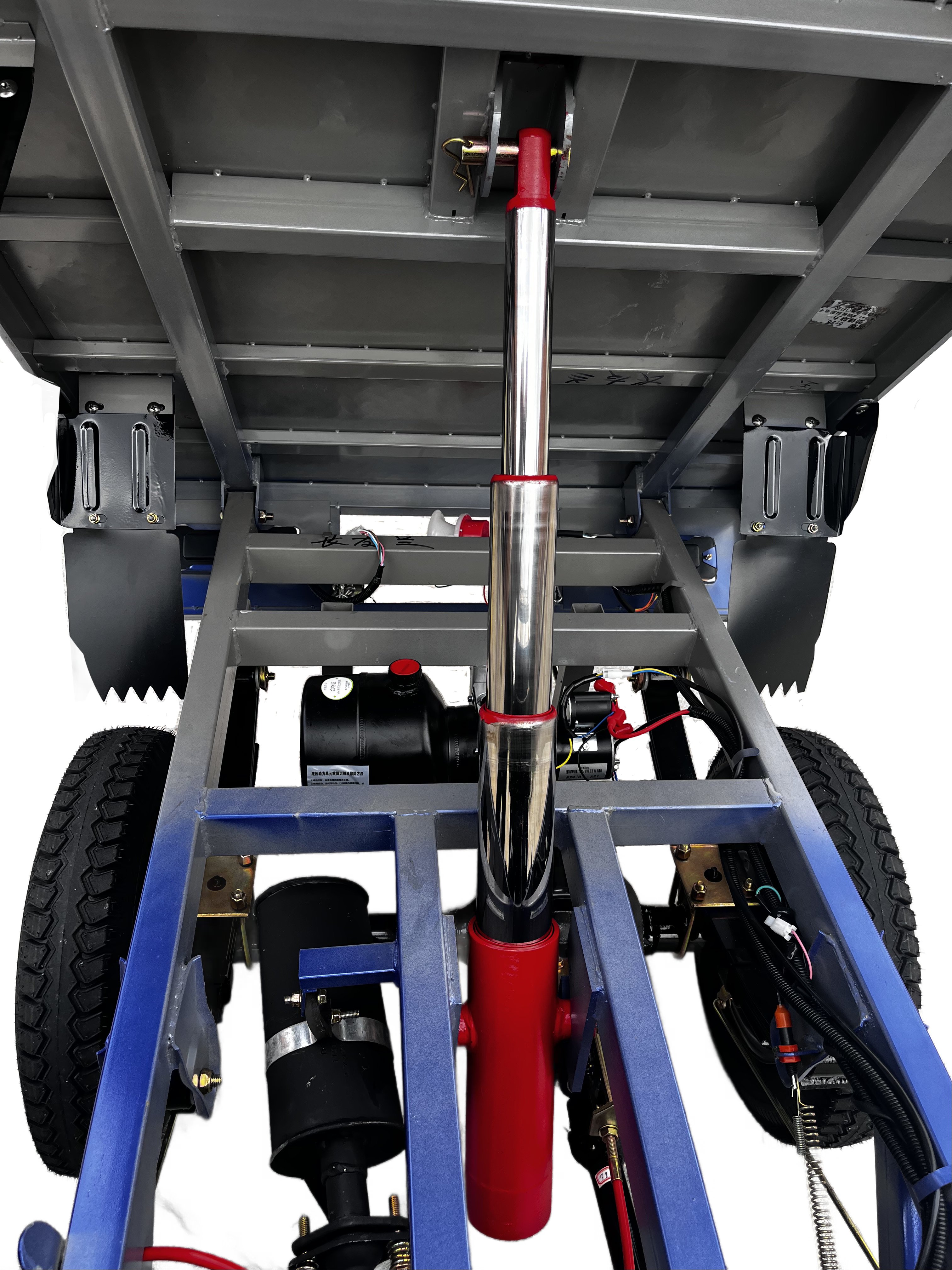

Hydraulic Dump Bed Motor: 12V,0.8KW
Front & Rear Tire: 4.00-12 Tubeless
Gradeability: 25°
Load Capacity (LBS): 1100
Fuel Tank Capacity(L): 20
Ground Clearance: 9.5"
Rear Axle Structure: load-Bearing Rear Axle
Front Shock Absorber: Hydraulic Shock Absorber
Bore x Stroke: Ф54×54
Reduction ratio: 9.0:1
Max Power Kw(r/min): 6.2/7000
Max Torque N.m(r/min): 9.8/4500
Fuel Consumption Rate(g/kw.h): ≤367
Lubricating System: Compressive+Splash
Wheel Base: 82.5”
Carton Dimensions: 118”x44”x36”
Cargo size: 121” x 43” x 55”
Weight(LBS): G.W: 850, N.W: 750

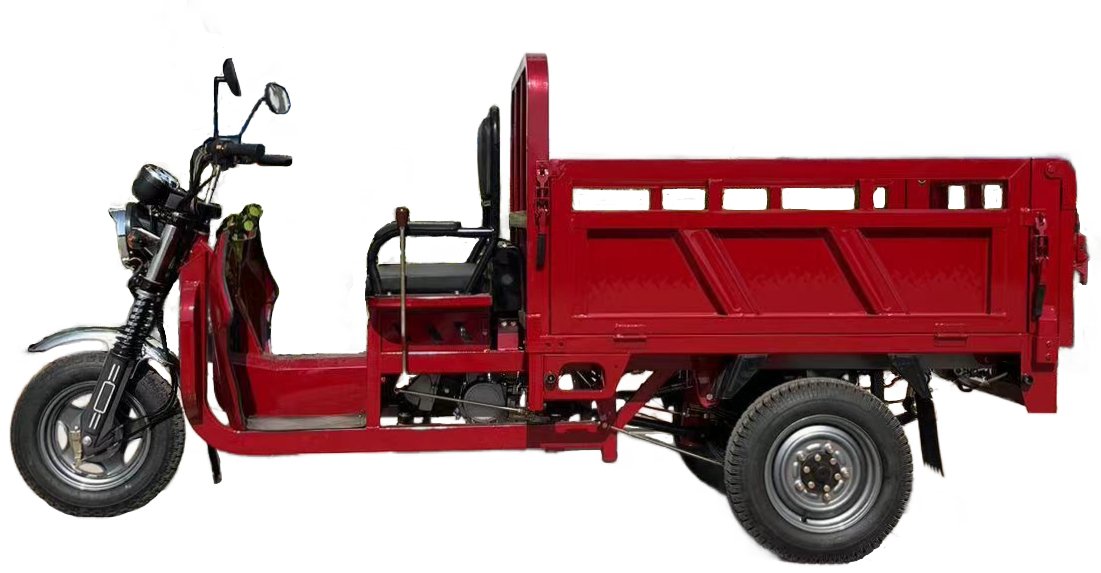

Color: Red, Blue

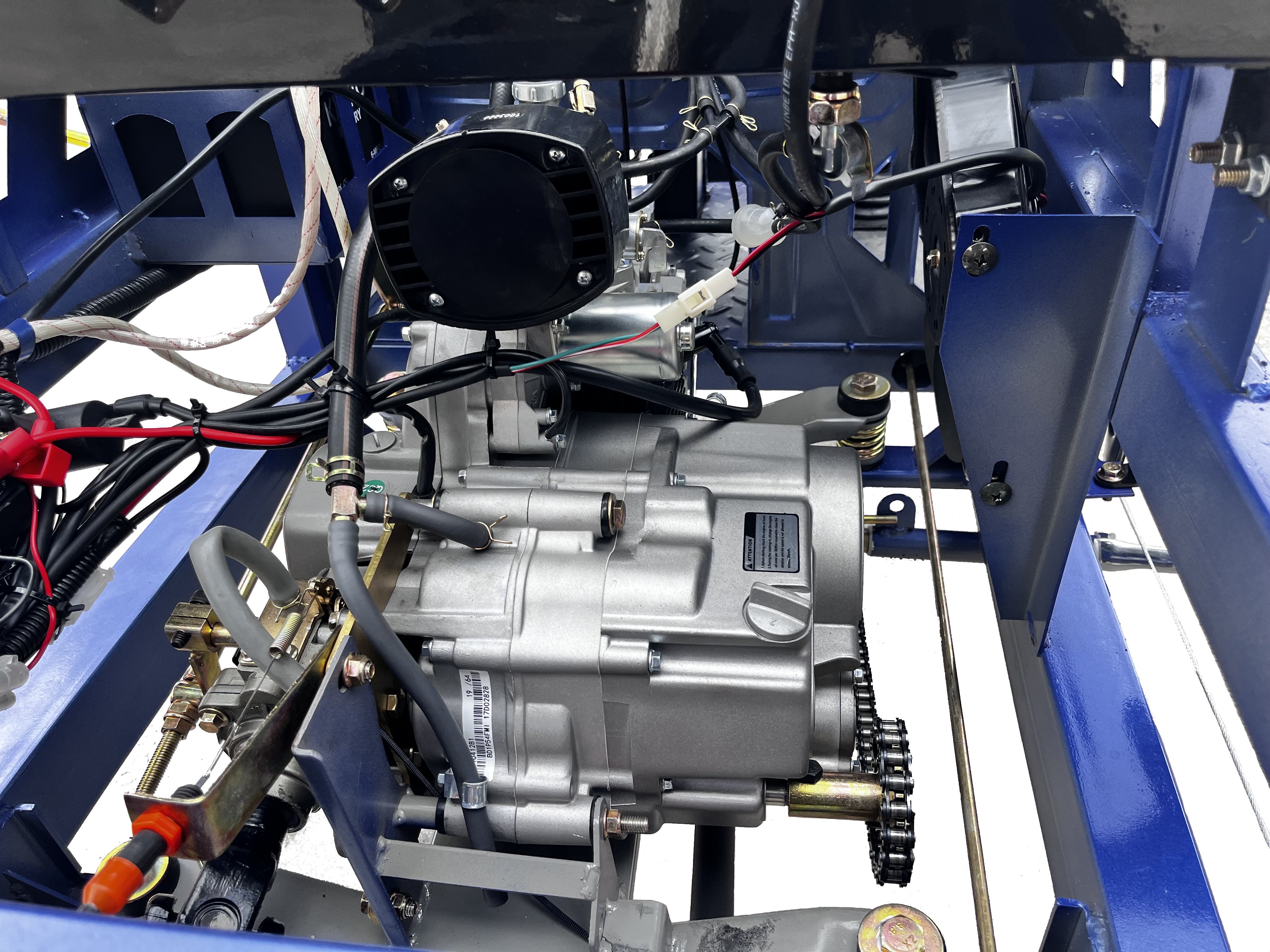

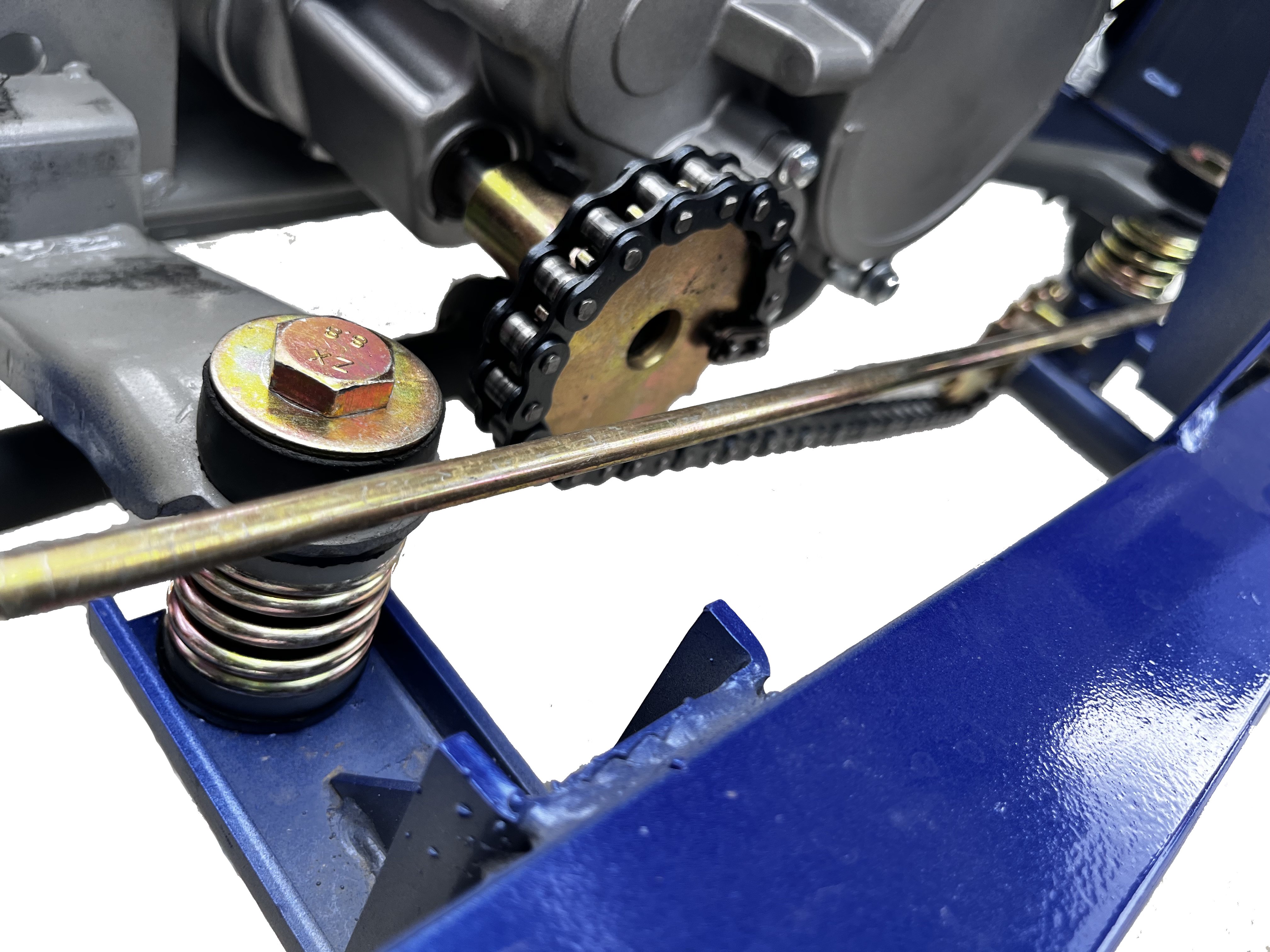

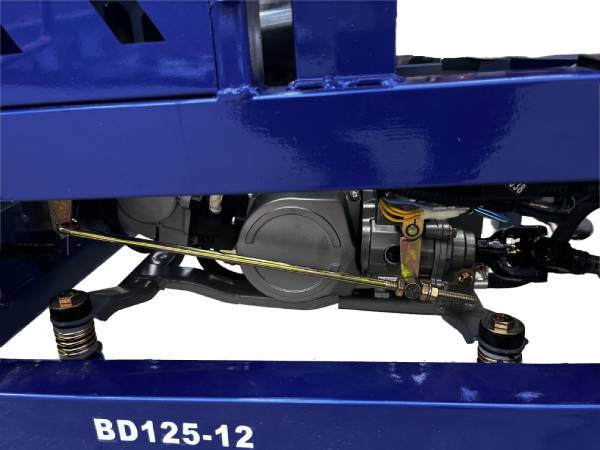

Engine Mounting Is Isolated With Springs For Vibration Damping Heavy Duty Rear leaf spring Suspension, Come With Cooling Fan.
