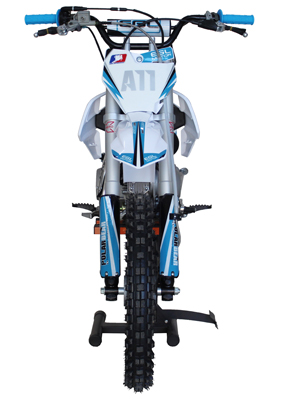

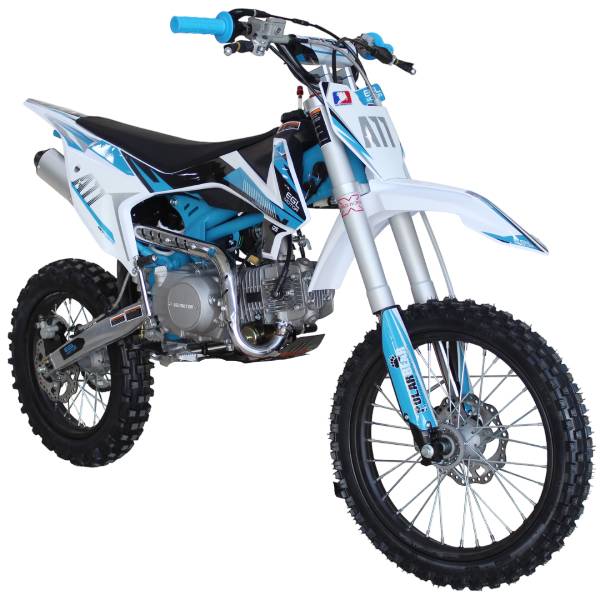

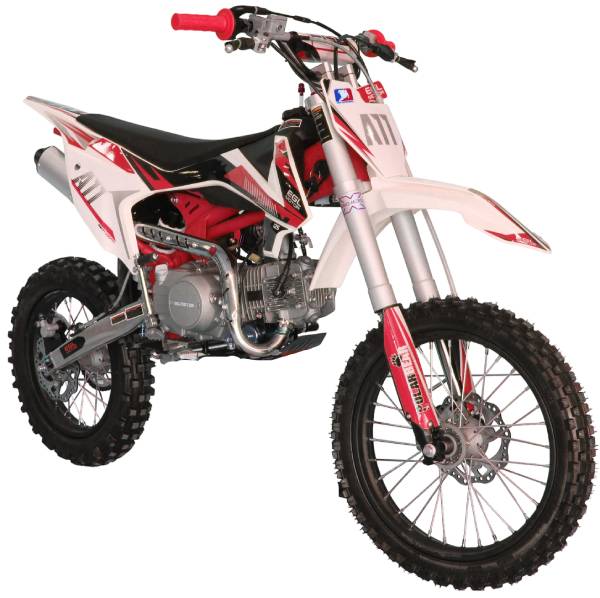

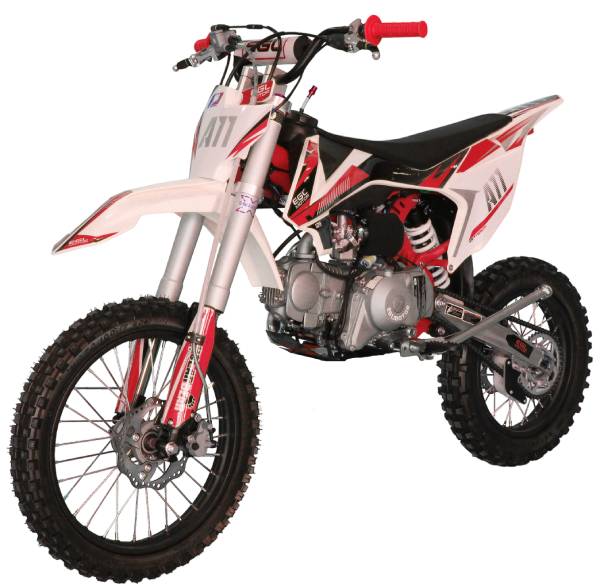

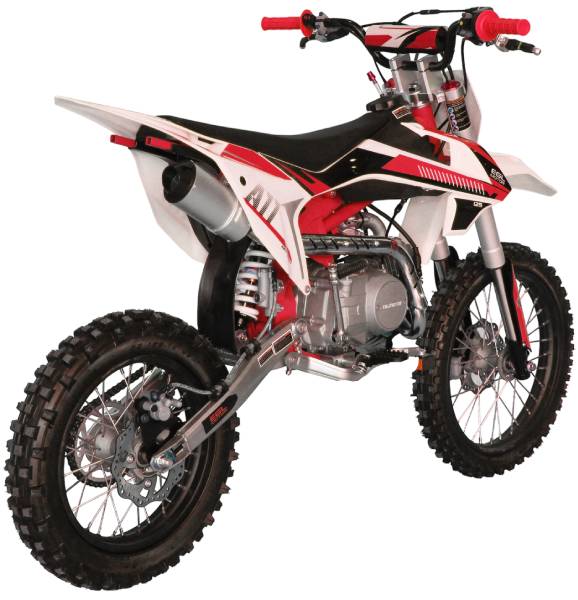

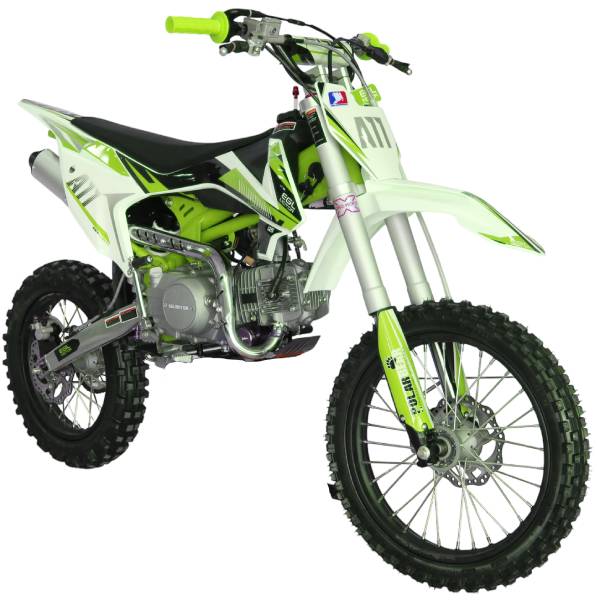

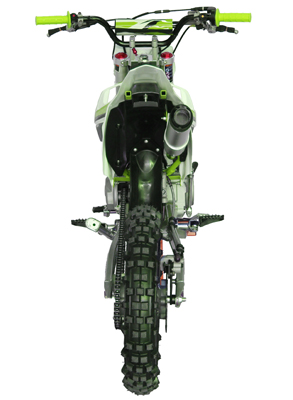

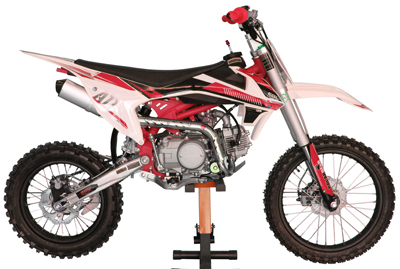

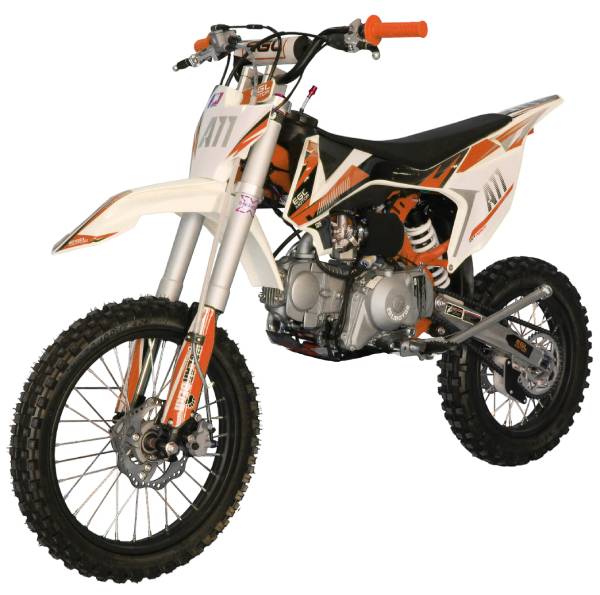

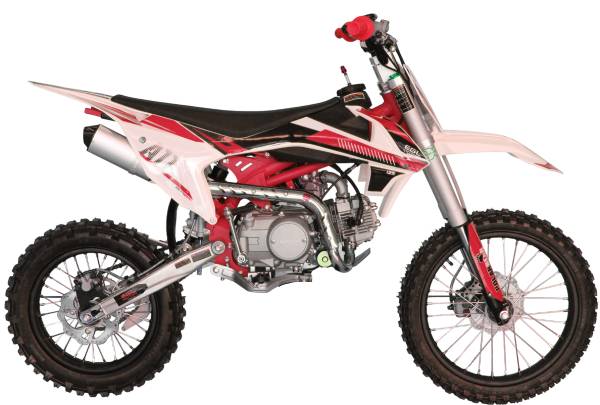

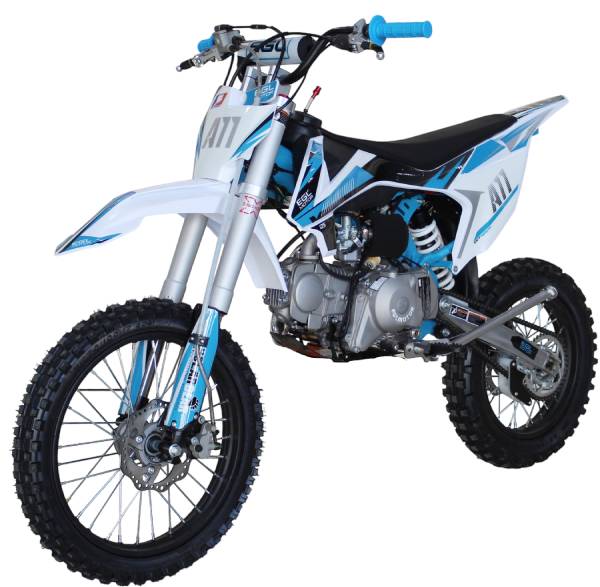

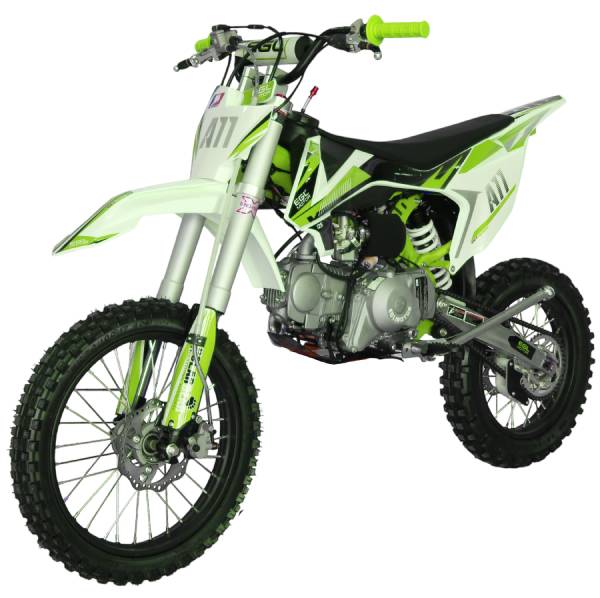

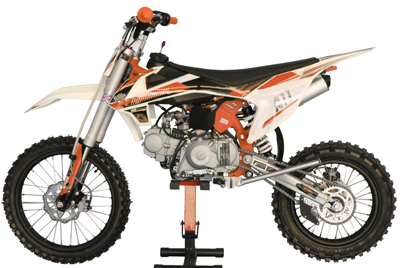

A-11

Engine : 125cc, 4 stroke, Single Cylinder

Transmission :  4-Speed,Manual Clutch

Cooling :  Oil-Cooled

Ignition System : CDI

Starting System : Electric/Kick  Start

Battery: 12V,4Ah

Final Drive : Chain Drive

F/Brake : Hydraulic Disc (Hand)

R/Brake : Hydraulic Disc (Foot)

Fuel Capacity :4.5L

Max Speed : 35-45 MPH

Front Tire : 90/100-14 ,Knobby Tire

Rear Tire: 70/100-17,Knobby Tire

Front Suspension: L=735mm up side down, not adjustable

Rear Suspension: L=280mm,  not adjustable

Max Power[Kw/r/m]: (6.3(1±10%))/(7500(1±5%))

Max Torque[N.m/r/m]: 8.8(1±10%))/(5500(1±5%))

Compression Ratio: 9.0:1

Seat Height: 32"

Ground Clearance: 13.8"

Max Load: 185 LBS

Weight: G.W.188LBS, N.W.144LBS

Bore & Stroke: 54X54

Wheelbase: 1220±3mm

Color: Blue/Red/Orange/ Green
